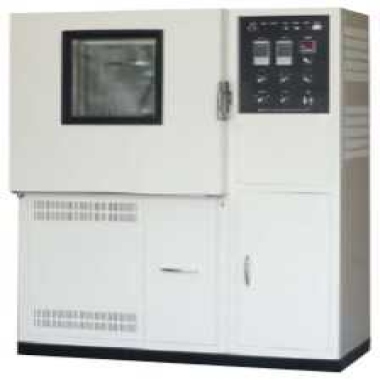

Water Vapor Permeability Testing Apparatus

Introduction:The device is a constant temperature and humidity moisture permeability test device, wh

WhatsApp: +86 13816217984

Email: info@qinsun-lab.com

Introducción:
The device is a constant temperature and humidity moisture permeability test device, which is suitable for sportswear and other requirements of the waterproof, moisture permeability of both the fabric, as well as plastic film, processed paper and other moisture-resistant packaging materials for the purpose of moisture permeability evaluation test.
Place a quantity of anhydrous calcium chloride into the empty moisture-permeable cup. Then install the sample and seal the moisture-permeable cup with the sample. The moisture permeable cup of the sealed package was placed in a laboratory for fixed temperature and humidity conditions for a period of time, and the moisture permeability of the sample was calculated by increasing the weight of anhydrous calcium chloride, thereby determining the moisture permeability of the sample.

Aplicaciones:

The device is a constant temperature and humidity moisture permeability test device, which is suitable for sportswear and other requirements of the waterproof, moisture permeability of both the fabric, as well as plastic film, processed paper and other moisture-resistant packaging materials for the purpose of moisture permeability evaluation test.



Criterios:

JIS L1099A Testing methods for water vapour permeability of textiles
JIS Z 0208 Testing methods for determination of the water vapour transmission  rate of moisture-proof packaging materials

Parámetros técnicos

Proyecto	Parámetros
Temperature range	20-50℃（Accuracy ：±0.3℃）
Moisture range	50-95%（Accuracy ：±2.0%）
Freezer	Air-cooled airtight compress
Cooler	Multi - stage heat sink cooler
Humidifier	Pot-type humidifier
Heater	Finned radiator
Circulating blower	Blower
Disc sample rack	270mm、2 paragraphs
Rotation speed of sample rack	8r.p.m
Water supply method	Pump pumping
Tanque de agua	10L
Moisture-permeable cup	JIS L 1099A Act requirements (10 groups)
Poder	AC 100V 50/60HZ 3KW
Indoor dimension	W350×D350×H500mm
Outside size	W1100×D550×H1500mm
