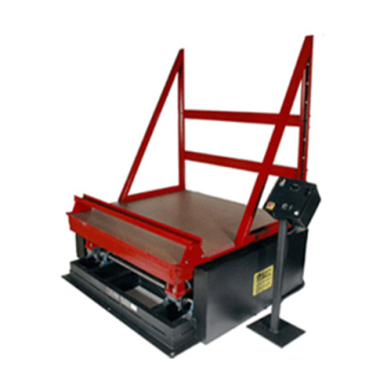

Vibration Table

Criterios

• ASTM D999: Vibration testing of shipping containers and packaged products.
• TAPPI T819: Corrugated box performance under simulated transport vibrations.
• ISO 2247: Packaging—Complete, filled transport packages—Low-pressure vibration test.
• ISTA 1A/2A: Standardized protocols for e-commerce and parcel shipping validation.

Product Advantages

1. Universal Testing Compliance

• Multi-Standard Certification: Pre-configured profiles for global logistics requirements.
• Regulatory Confidence: Meets Amazon, FedEx, and UPS carrier testing specifications.

2. Realistic Transport Simulation

• Circular Vibration Mode: Mimics truck, rail, and aircraft vibration profiles.
• 2–5 Hz Frequency Sweep: Replicates road roughness to port handling impacts.

3. User-Centric Operation

• Digital Control Panel: LCD speed display with 0.1 Hz resolution.
• Auto-Stop Counter: Programmable cycle limits (1–999,999 counts).

4. Adaptable Design

• Modular Payload Capacity: 100–8,000 lbs (45–3,628 kg) load range for parcels to pallets.
• Ergonomic Loading: Low-profile front ramp (8° incline) for forklift-free sample placement.

5. Industrial Durability

• Abrasion-Resistant Deck: 12mm steel plate with diamond-hard coating.
• Maintenance-Free Drive: Sealed motor system with 10,000-hour MTBF rating.

Product Features

• Vibration System:
  • Synchronous Motor: 3-phase AC drive with 0.1 Hz frequency resolution.
  • Circular Orbit: 25.4mm (1”) amplitude for realistic transport simulation.
• Control Interface:
  • 4.3” TFT touchscreen with pre-loaded ASTM/ISTA protocols.
  • USB port for test data export and firmware updates.
• Safety Systems:
  • Emergency stop with E-Stop loop monitoring.
  • Overload protection at 110% of rated capacity.
• Deck Configuration:
  • Adjustable rear bumper (0–300mm height adjustment).
  • Removable front guard for unobstructed sample access.
• Mobility:
  • Heavy-duty casters with floor locks for stationary operation.
  • Forklift pockets for warehouse relocation.

Parámetros técnicos

Accessories & Options

1. Load Capacity Expansion:
   • Reinforced deck frames for 4,000–8,000 lbs payloads.
   • Distributed load spreaders for palletized testing.
2. Software Add-Ons:
   • VibLog Pro™: Real-time FFT analysis and vibration spectrum logging.
   • Cloud Logistics: Remote monitoring for global supply chain teams.
3. Calibration Services:
   • Annual recalibration with ISO 17025-accredited certificate.
4. Safety Upgrades:
   • Seismic-rated anchoring system for high-risk zones.
   • Explosion-proof enclosure for hazardous environments.
5. Consumables:
   • 1L High-temperature lubricant for motor maintenance.
   • 5 × Replacement deck anti-slip mats.
