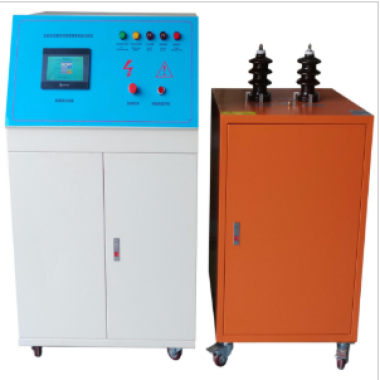

AC/DC High - Voltage Testing Machine for Automotive Wires

The AC/DC high - voltage tester for automotive wires is specially used to test the insulation between wire cores or between wire cores and outer sheaths of finished wire and cable products.

Parámetros principales:

1. Power: 3KVA 2. Input voltage: 220V/50HZ 3. Voltage output: AC/DC: 0 - 10KV or 0 - 15KV 4. Breakdown current: 0 - 300 mA or 0 - 500 mA 5. Test time: Can be set within the range of 1 - 999.9 S/M/H 6. Voltage - rising mode: It has an electric control function and can automatically raise the voltage to the set value according to the preset voltage value. 7. Voltage - rising speed: Can be set within the range of 10V - 500V/S 8. Alarm functions: Threshold safety alarm, zero - voltage safety alarm, audible and visual alarm during voltage - rising, breakdown alarm 9. Emergency stop function: Equipped with an emergency stop function, which can quickly cut off the voltage and terminate the test. 10. Transformer protection function: When the transformer is over - current or over - loaded, it can automatically cut off the test input voltage, terminate the test, and protect the transformer.
