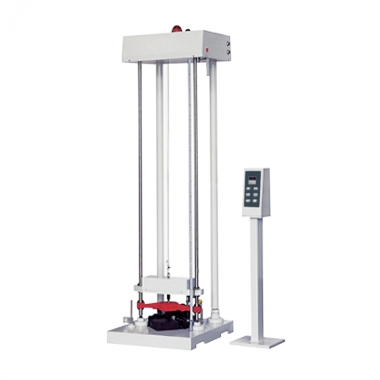

Safety shoe impact testing machine

According to the criteria:

Bs-953,1870

EN-344,

ANSI-Z41

CSA-Z195

ISO K88782

EN ISO 20344,

ANSI-Z41

BS EN-344

CSA-ZI95

LD50-1994

AS/NZS 2210.2

GB/T 20991

GB 4014-1983

BS-953

EN 12568,

ASTM F2412

ASTM F2413-11

LD-50

CNS 6863-82

JIS-T8101:2000

Product Advantages:

Measures Critical Safety Property: Quantifies the impact resistance of safety shoe toecaps, a fundamental requirement for protecting the wearer's feet.

Standard Compliant: Designed to meet numerous international and national standards (EN 344. ANSI Z41. CSA Z195. BS standards, etc.) for safety footwear impact testing.

Simulates Impact Hazards: Replicates the force of falling objects onto the toecap under controlled conditions.

Provides Objective Assessment: Allows for evaluation based on measurable criteria such as residual height and visual inspection for failure.

Accommodates Multiple Standards: Configurable to meet the specific drop hammer weights, falling heights, and impact energies required by different standards.

Robust and Durable: Constructed to withstand the forces generated during impact testing.

Essential for Certification: A necessary test for certifying safety footwear according to various protective standards.

Características del producto:

Drop hammer mechanism capable of holding and releasing a drop hammer from a specified height.

Capability to use different standard drop hammer weights, such as 20$\pm$0.2kg (for EN standards) and 22.7kg (for BS, ANSI standards).

Adjustable falling height for the drop hammer, with a range typically from 0 up to at least 1100mm (for EN standards).

System for achieving specific impact energies, such as 200 joules (for EN standards) and 100$\pm$2 joules (for BS, ANSI standards), which are determined by the drop hammer weight and falling height.

Standardized impact edge on the drop hammer, with specifications varying by standard (e.g., 3$\pm$0.1mm radius for EN, $\phi$25.4mm for ANSI).

Anvil or baseplate on which the shoe is placed for the impact test.

Fixture or system for securely mounting the safety shoe in the correct position for the impact test.

Mechanism for measuring the residual height inside the toecap after the impact.

Electric motor (DC 1/4HP) for raising the drop hammer to the required height.

Robust and heavy construction (approximately 227kg) to ensure stability during impact.

Parámetros técnicos:

Weight of drop hammer: （EN） 20±0.2kg,（BS,ANSI）22.7kg

Falling height: （EN） 0——1100mm

Impact capacity: （EN） 200 joules, （BS, ANSI） 100±2 joules

Impact edge: （EN）3±0.1mm（R），（ANSI）ø25.4mm

Horsepower: DC 1/4HP

Volume: 58.5×69.5×181.5cm

Weight: 227kg

Power supply: 1∮，AC220V
