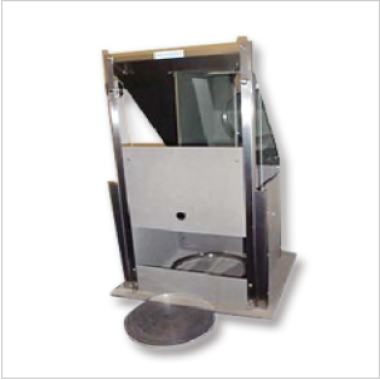

Carpet Flammability Tester

Instrument Features

- Equipped with a measuring grid and a positioning ring - The sliding plate facilitates operation - The mirror enables easy observation - Suitable for two different testing methods - Safe to operate

Product Details

The carpet flammability tester is used to detect the impact of small ignition sources on carpets. It can be tested using two methods: the hot metal nut method (BS 4790); and the polymer plate method (ISO 6925 and BS 6307). The test chamber is made of flame - retardant and heat - resistant plates and contains a sliding plate for easy operation. The mirror on the top of the test chamber allows the operator to observe the sample during the test.

Testing Methods

Hot Nut Method: Heat the stainless - steel nut to 900°C in a muffle furnace. Place the sample to be tested in the test chamber and use crucible tongs to put the positioning ring on the sample. Place the heated nut in the center of the positioning ring, remove the nut after 30 seconds, and then conduct measurements to evaluate the spread of the ignition point on the sample.

Polymer Plate Method: It is recommended to place the test chamber in a laboratory fume hood. Put the conditioned sample on the movable base in the test chamber, and place a metal disc with a circular cut - edge on the sample. Place the polymer plate in the center of the sample and ignite it. After the flame is extinguished, measurements can be carried out to evaluate the combustion effect.

Consumables

1. Test chamber (including furnace) 2. Test accessories for the hot nut method 3. Test accessories for the polymer plate method 4. M16 nut for the hot nut method 5. Polymer plate for the polymer plate method

Criterios de conformidad

BS 4790; ISO 6925; BS 6307
