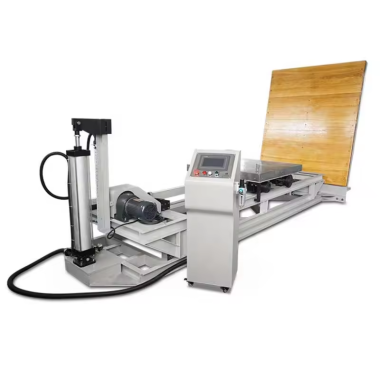

Oblique impact testing machine

Standard

• ASTM D7748: Impact resistance testing of packaging and transport systems.
• ISO 13355: Automotive component durability evaluation under oblique load conditions.
• ISTA 3E: Simulates truck collision scenarios for palletized freight testing.

Product Advantages

1. Rapid Precision Deployment

• Pneumatic Positioning: Sub-0.1mm repeatability for crash velocity calibration.
• Tool-Free Adjustment: Dial-in impact speeds from 2–12 ft/sec (0.6–3.7 m/s).

2. Modular Impact Configuration

• 6 Load Capacities: 1,000–10,000 lbs (454–4,536 kg) for consumer goods to industrial machinery.
• Scalable Collision Surfaces: Up to 96” × 96” (2.4m × 2.4m) for full-scale product testing.

3. Advanced Data Acquisition

• 4-Channel TLP System: 100 kHz sampling rate captures peak G-forces and deformation.
• Bi-Directional Velocimetry: 1,000VM laser sensor with 0.01 ft/sec resolution.

4. Ergonomic Workflow

• Low-Profile Sled: 8” ground clearance for forklift-free specimen loading.
• Self-Centering Guides: Automatic alignment for repeatable impact angles.

5. Industrial Durability

• Hardened Steel Targets: AR500-grade collision plates resist deformation.
• Sealed Drive System: IP67-rated motor for dusty/wet environments.

Product Features

• Impact System:
  • Pneumatic Launcher: 0–8 ft/sec (0–2.4 m/s) in 0.1 ft/sec increments.
  • Fail-Safe Braking: Hydraulic deceleration system with 10g emergency stop.
• Data Acquisition:
  • TLP Pro Software: Real-time force-time curves and energy dissipation analysis.
  • Unit Conversion: Toggle between imperial (lbs, ft/sec) and metric (kg, m/s).
• Safety Systems:
  • Enclosure interlocks with laser safety curtains.
  • Overload protection at 110% of rated capacity.
• Sled Design:
  • Reinforced steel frame with replaceable aluminum impact face.
  • Adjustable height collars for 0°–15° oblique angles.
• Mobility:
  • Forklift pockets and lifting eyes for warehouse relocation.
  • Collapsible guardrails for narrow-aisle storage.

Parámetros técnicos

Accessories & Options

1. Collision Surface Upgrades:
   • AR600 steel targets for high-abrasion testing.
   • Replaceable rubber bumpers for soft-impact simulation.
2. Software Add-Ons:
   • CrashView Pro™: High-speed video synchronization (up to 10,000 fps).
   • Cloud Safety: Remote monitoring for global compliance teams.
3. Calibration Services:
   • Annual NVLAP-accredited velocity calibration.
   • Accelerometer cross-axis sensitivity testing.
4. Safety Upgrades:
   • Explosion-proof enclosure for hazardous environments.
   • Seismic-rated anchoring system for earthquake zones.
5. Consumables:
   • 1L High-temperature lubricant for linear bearings.
   • 5 × Replacement laser sensor covers.
