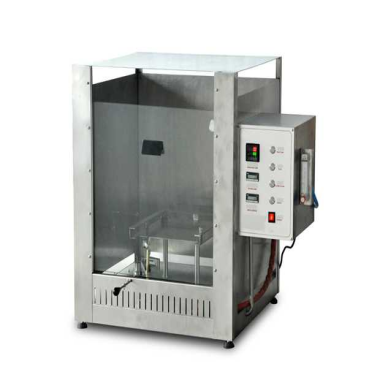

Sleeping Bag Flammability Tester -ASTM F1955

Standards：ASTM F1955，CPAI 75 Application：Sleeping Bag Flammability Tester, to determine the flammabi

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Criterios:

ASTM F1955，CPAI 75



Aplicaciones:

Sleeping Bag Flammability Tester, to determine the flammability resistance of sleeping bag. Both manual testing method and automatic testing method can be performed. Flame height can be adjusted through gas valve provided.



Ten specimens are cut from individual sleeping bags or a physically accurate facsimile. A standard-ized flame is applied to the folded edge for a specified time under controlled conditions and the burn rate is calculated to determine if the specimens meet specification requirements.



Specifications：

Stainless steel test chamber (Includes glass viewing windows)

Stainless steel support frame

Sample clamp with U-shaped

#50 White mercerized cotton thread

Burner diameter: 0.90+-0.03mm

Burner length: 1.60+-0.05mm

Burner tube inside diameter: 10mm

Burner tube length: 38mm

Weight hammer: 2



Product parameters：

Weight：90 kg

Power：220/110 V，50/60 Hz

Width:720 mm

Depth:800 mm

Height:760 mm
