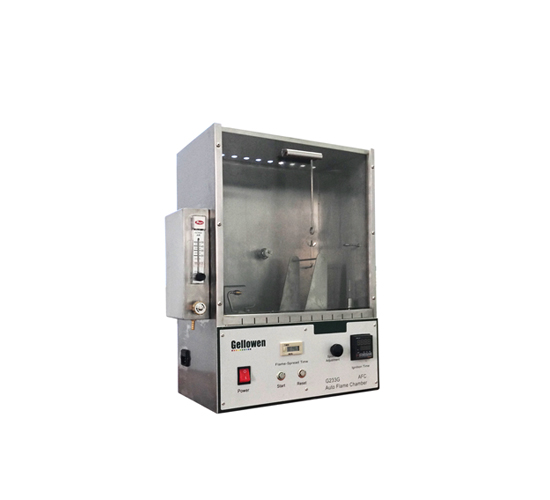

45 Degree Flammability Tester

The 45° flammability tester consists of a control system and a combustion chamber. The sample is mounted on a sample holder in the combustion chamber at a 45° angle. The burner is positioned close to the sample, and the sample is ignited with a flame for a specified time before the burner is withdrawn. The burning behavior of the sample and the flame spread rate on the sample are observed to evaluate the ignitability and flame propagation performance of the sample.

Application

45 Degree Flammability Tester is used to determine the burning characteristics of textiles fabric under controlled conditions. This test method covers the evaluation of the flammability test of textile fabrics as they reach the consumer for or from apparel other than children’s sleepwear or protective clothing.

Standard

ASTM D1230: Flammability of Apparel Textiles (45° Inclined Method)

CFR 16 Part 1610: Flammability of Clothing Textiles (Federal Standard)

GB/T 14644: Textiles – Burning Behavior – 45° Test Determination of Flame Spread Rate

FTMS 191-5908: Flammability of Textiles (Federal Test Method Standard)

CAL TB 117: Flame Resistance of Upholstered Furniture Filling Materials

NFPA 702: Field Flame Test for Textiles and Films

Product Advantages

Automated Precision: Built-in control system with automatic ignition, timer (0.1s accuracy), and reset for consistent testing.

Adjustable Flame Control: Standard flame height (16mm) with calibrated burner for reliable results.

Standardized Accessories: U-shaped sample holder (152mm × 38mm), bristle device, and flame gauge ensure compliance.

Multi-Industry Application: Tests textiles, toys, soft furniture, and apparel for flame retardancy.

Data-Driven R&D: Provides quantitative data for material innovation and quality acceptance.

Safety Compliance: Meets ASTM, ISO, and federal standards, reducing export certification barriers.

Feature

45° Inclined Testing: Simulates real-world flame spread angles for accurate flammability classification.

Smart Touch Interface: Integrated printer for real-time report generation and data storage.

High-Precision Flow Meter: Ensures stable flame height (16mm ±1mm) and pressure control.

Ventilation System: Rear vent holes (φ12.7mm × 11) and top exhaust (φ12.7mm × 16) optimize airflow.

Sample Fixation: U-type clamp with knob adjustment for specimen thickness (45° tilt angle).

Durable Construction: Stainless steel burner (26# syringe needle) and corrosion-resistant components.

Technical Parameters

Accessoriess

1. Brushing device

2. Burner (5/pack)

Test Procedures

a. Remove a sample holder containing a prepared sample from the desiccator and place it on the sample holder inside the testing apparatus. Thread the marker line through the guide hook on the sample holder plate, and then hang a weight on the marker line just below the guide loop to keep it taut.

b. Close the test chamber door. Set the timer to zero, press the start button, and the timer will begin counting, allowing the flame to contact the sample surface for 1 second. When the flame burns through the marker line attached to the upper part of the sample, the weight will fall due to the line breaking, and the timer will stop. Accurately record the burning time shown on the timer. The time from removing the sample from the desiccator to igniting the sample should not exceed 45 seconds.

c. During the test, observe the burning condition of the sample. If the burning is incomplete, observe the back of the sample for any signs of charring or melting.
